suppose that the 25 resistor in problem 8 is replaced by a 45 resistor. without performing any calculations, describe qualitatively the change in each of the following
116k views
2 votes
suppose that the 25 resistor in problem 8 is replaced by a 45 resistor. without performing any calculations, describe qualitatively the change in each of the following

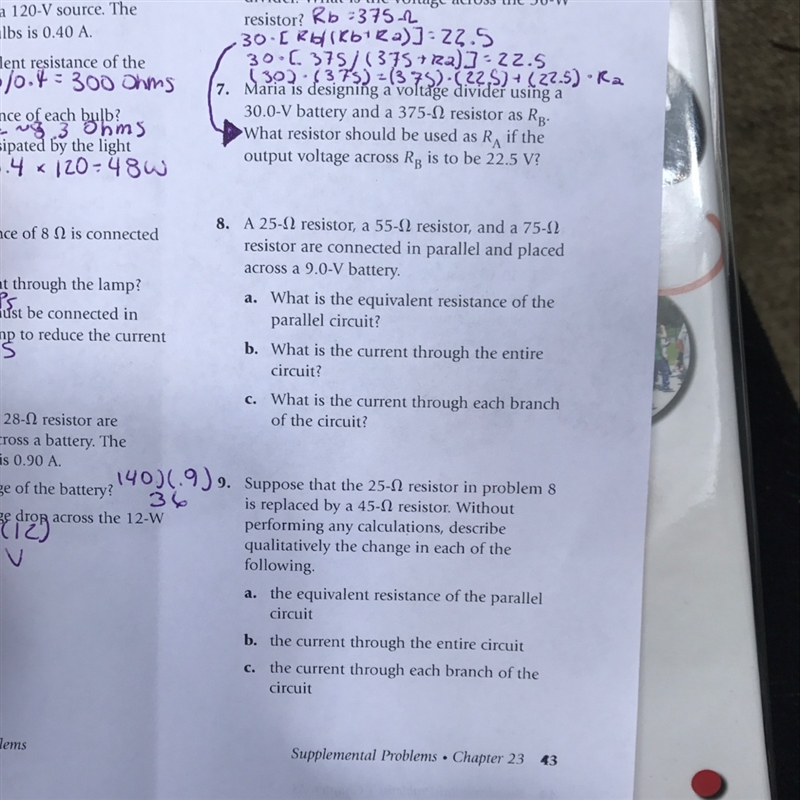

suppose that the 25 resistor in problem 8 is replaced by a 45 resistor. without performing-example-1
User Nick A Miller
by
7.9k points

1 Answer

4 votes
a) Equivalent resistance increases
b) Current through entire circuit decreases
c) Current through the two ( 55 and 75 resistors remains the same), current through 45-resistor is 0.2A
User Dmytro Zhytomyrsky
by
7.9k points
