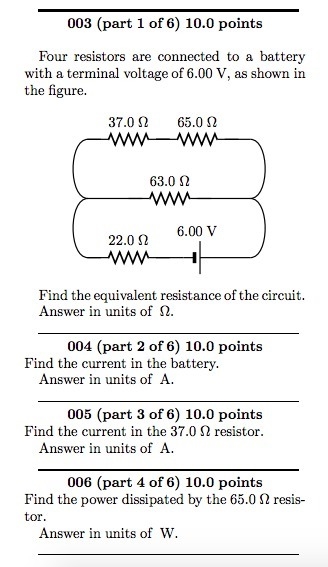

#5 Find the current in the 37.0 Ω resistor. Answer in units of A.

I have my test over this tomorrow and I'm very confused.

I got 3 and 4 correct but I'm stuck on #5. #3 was 60.94545461 Ω and #4 was 0.0984486872 A.

#5 Find the current in the 37.0 Ω resistor. Answer in units of A. I have my test over-example-1
User Iamserious
by
7.5k points

1 Answer

4 votes

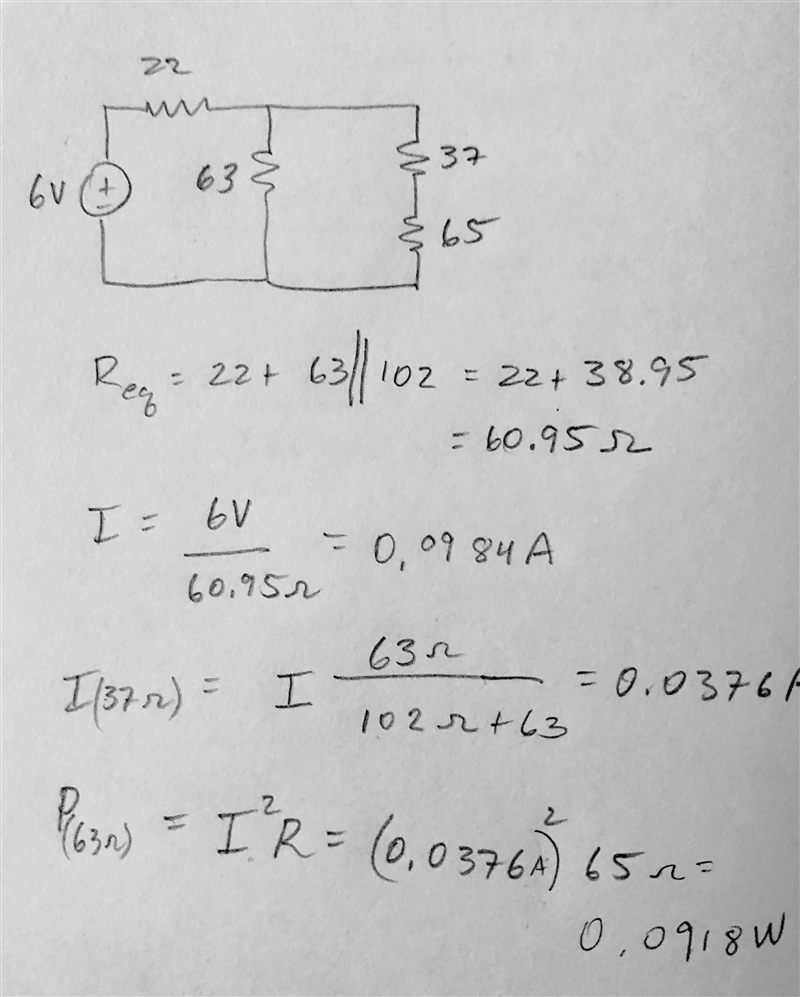

Here it is.  Good luck on the test!
#5 Find the current in the 37.0 Ω resistor. Answer in units of A. I have my test over-example-1
User SoGoddamnUgly
by
8.8k points
