Question

ASAP please!!

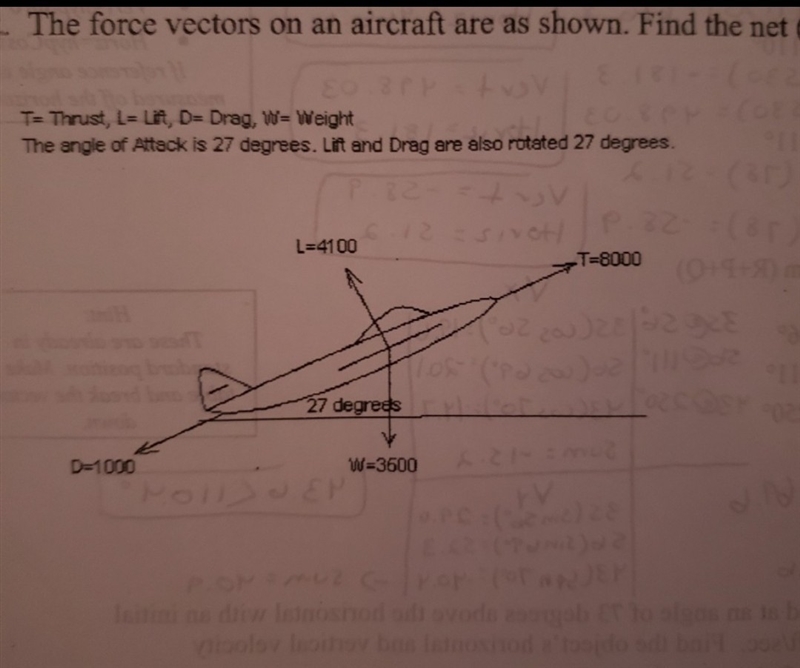

The force vectors on an aircraft are as shown. Find the net (resultant force).

Answer 1

The magnitude of the net force is 5430N

Step-by-step explanation:

I suggest to define the axes as aligned to the axis of the plane. This will require you to decompose only one vector, namely the Weight. We need two components of the W force: one in horizontal direction of the plane, the other perpendicular to it. Through a simple triangle argument you will se that the plane-horizontal component of W is

`W_D=3600 N\cdot\sin 27^\circ=1634N`

acting in the direction of the Drag, and the plane-perpendicular component is:

`W_L=-3600N\cdot\cos 27^\circ=-3208N`

with negative sign since it counteracts the Lift.

So the components of the netforce F are:

`F_h=T-D-W_D=(8000-1000-1634)N=5366N\\F_v=L+W_L=(4100-3208)N=829N`

The magnitude of the net force is:

`|F|=√(5366^2+829^2)N = 5430N`
